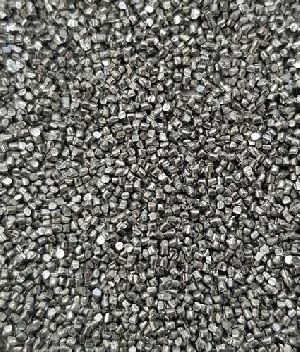

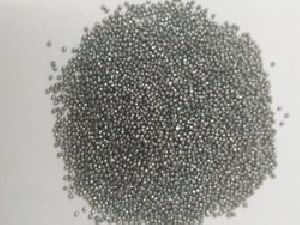

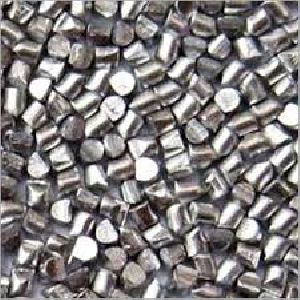

Stainless Steel Cut Wire Shots
Specifications
| Material | Stainless Steel |
| Diameter | 0-10mm, 0.4mm To 2.5mm |
| Application | Automobile Industry |
| Condition | Solid |
| Usage | Shot Blasting, Industrial |
| Features | Accuracy Durable, Corrosion Resistance, Extra Stronger, High Quality, High Tensile, Long Functional Life |
| Strength | Optimum |
| Size | 0-15mm, 15-30mm, 2.50 mm - 3.00 mm |
| Density | 8.60 g./cc. |
| Hardness | 40-50 HRC, 180-205 HV. |
| Brand | V.Shot |
| Packing Type | HDPE Bag |
| Packing Size | 25Kg |
Additional Information
| Product Code | VS-001 |
| Min. Order Quantity | 100 Kilogram |
| Port | mumbai Navha shawa |
| Payment Terms | T/T |
| Packaging Details | 25kg and 1 ton pallets, 25 Kilogram |
Advantages
- Most economical and lowest consumption
- Consumption 3-4 times less compare to cast shot
- No dust formation
- Faster cleaning
- Environmental friendly
- Uniform hardness
- Stabilized grain size
- Increased fatigue life of blasted parts
- Stainless steel cut wire shot has a significantly longer Shots life than cast steel shot or grit and carbon cut wire shot .
- Dust generation is significantly lower – blasting operations are much cleaner
- Stainless steel cut wire shot produces excellent Surface results because of its uniformity and strength
- It will make you a “Greener” organization because disposal of spent media will be significantly reduced. (You won’t need as much shot, inventory requirements will be lower, and inbound freight will cost less.)
Applications
- Surface finishing
- Obtain profile pattern
- Shot peening
- Shot blasting
- Grit removal
- Pre treatment
- Rust removal
- Blast cleaning
Available as per following Specifications
- SAE : J441
- As- Cut : Cylindrical
- Normal : Corners Pre Rounded
- Conditioned : Almost Spherical
- Semi Conditioned : Not Spherical
Available Shapes
- As- Cut : Cylindrical
- Normal : Corners Pre Rounded
- Conditioned : Almost Spherical
- Semi Conditioned : Not Spherical
Chemical Composition
| Grade | Carbon (Max) | Manganese(MIN-Max) | Chromium (Min-Max) | Nickle | Silicon(max) | Phosphorous(max) | Sulfur(max) |
| 304 | 0.08 | 2 | 18-20 | 8 | 1 | 0.075 | 0.030 |
| 302 | 0.15 | 2 | 17-19 | 8 | 1 | 0.045 | 0.03 |
| 202 | 7-10 | 17-19 | 4 | 1 | |||
| 430 | 0.03 | 1 | 16-18 | Nil | 1 | 0.04 | 0.03 |
Available Sizes
| SAE | S-170 | S-190 | S-230 | S-280 | S-280 | S-360 | S-390 | S-460 | S-550 | S-660 |
| Equivalent Size in mm | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 |
| Cut Wire Shot range in mm | 0.3 -0.5 | 0.4 -0.60 | 0.5- 0.7 | 0.6-0.8 | 0.7-0.9 | 0.8-1.1 | 0.8- 1.2 | 1-1.4 | 1.2-1.6 | 1.4-1.8 |
Hardness
| Material | Micro Structure | Grade | HRC | Vicker |
| SS Shot | Austenitic | 304 | 48-53 | 480-560 |
| `SS Shot | Austenitic | 302 | 48-53 | 48-53 |
| SS Shot | Austenitic | 202 | 50-55 | 520-580 |
| SS Shot | Ferritic | 430 | 38-43 | 380-430 |
