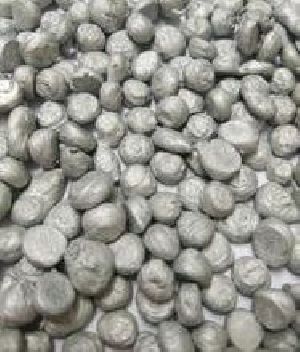

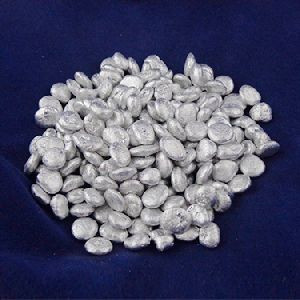

Aluminum Shot
Specifications
| Size | 0.8-35 mm |
| Material | Aluminium |
| Thickness | 10-15mm |
| Certification | ISI Certified |
| Color | Grey |
| Surface Finishing | Polished |
| Features | Corrosion Resistance, Extra Stronger, High Tensile |
| Brand Name | V.Shot |
| Purity | 97%, 98%, 99%, 99.97% |
Additional Information
| Product Code | VS-003 |
| Min. Order Quantity | 100 Kilogram |
| Payment Terms | L/C, T/T |
| Delivery Time | 7-10 days |
| Packaging Details | 25KG and 1TOn Pallets, 25 kg PP Bag |
The company has come up as a major Manufacturer, Exporter and Supplier of Aluminum Shot for Shot Blasting in Indore. The Aluminum Shot for Shot Blasting is manufactured keeping the commercial grade purity in mind. The Aluminum Shot for Shot Blasting is a customized product to the extent of more than 90% and can be made as per given specifications.
Advantages
- Most economical and lowest consumption
- Consumption 3-4 times less compare to cast shot
- No dust formation
- Faster cleaning
- Environmental friendly
- Uniform hardness
- Stabilized grain size
- Increased fatigue life of blasted parts
Applications
- Surface finishing
- Obtain profile pattern
- Shot peening
- Shot blasting
- Grit removal
- Pre treatment
- Rust removal
- Blast cleaning
- Aviation
- Automobiles
- Motorcycles
- Spinning machines
- Aluminum profiles
- Stainless steel casting parts
- Internal-combustion engines
- Zinc and aluminum casting parts
Features
- Better finish
- Low maintenance
- Environment friendly
Available Sizes
| SAE | S-170 | S-190 | S-230 | S-280 | S-330 | S-360 | S-390 | S-460 | S-550 | S-660 |
| Equivalent sizes in mm | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 |
| Cut Wire Shot range in mm | 0.3 -0.5 | 0.4 -0.60 | 0.5- 0.7 | 0.6-0.8 | 0.7-0.9 | 0.8-1.1 | 0.8- 1.2 | 1-1.4 | 1.2-1.6 | 1.4-1.8 |
Hardness
| Type of Material | Material Used | HRB |
| Aluminum | Wire Types4043-5356 full hard Wire Types 1100-1350 full hard |
40-70 20-40 |
| Copper | Commercial quality pure copper Grade 102-110 | 25-60 |
| Lead | Commercial quality | Commercial quality |
| Zinc | Commercial quality pure Zinc | 20-30 |
| Brass | Commercial Quality |
Details
| Grades | Al% | Hardness | Sizes | Purpose |
| Al Cut Wire Shot | 0.999 | 95-130 mpa | 0.80mm - 3.20mm | Shot Blasting /De-oxidation |
| Aluminum Shot | 99% + | -- | 5 mm to 15 mm | De-oxidation |
| Aluminum Shot | 98% + | -- | 5 mm to 15 mm | De-oxidation |
| Aluminum Shot | 96-98 % | -- | 5 mm to 15 mm | De-oxidation |
